Advantage:
1. Over 10 Years' efforts in making high quality tungsten carbide bars and strips, Almost 8 years in doing importing and exporting business.
2. Rich experience in grade researching, mould designing, automatic press, HIP sintered, surface treating and quality control.
3. We have many years of experience in producing the tungsten carbide strips and have gained a wide reputation in the market . Welcome your inquiry anytime .
The main composition of tungsten carbide bars or Hard Alloy K20 Tungsteng carbide blanks is tungsten carbide powders and cobalt powders .With its wear resistant and corrosion resistant ability , tungsten carbide nowadays is widely used in many areas such as : cutting tools , moulds , oil and automobile industry etc .
Tungsten carbide strip and bars is used as the cutter for the TCT woodworking knives for cutting all kinds of original wood , hard wood , HDF, MDF , plywood , particle board , laminated board, composite material ,grass, aluminum and metals . It can give much more excellent performance than HSS .
RX10 High hardness, suitable for roughing of iron, solid wood, dry wood or nonferrous metal, ceramic and other alloys.
RX20 High toughness, easy to be brazed without heat preservation. Suitable for rosewood, solid wood, pinewood, and other wood with a lot stammer.
RX10T High hardness, suitable for finishing of iron, nonferrous metal, ceramic and other alloying, semifinishing of of hardwood, chipboard, MDF and HDF. Better to use silver soldering.
AB10 High toughness, difficult to break tooth. Special used for finger jointing tool.
Advanced production equipment and unique manufacturing technology to achieve stable quality and short delivery cycle.
Perfect process and ISO9001 quality certification system to ensure product control lability and stability.
Adapt to market demands, develop new materials and optimize product performance.
| THICKNESS |
WIDTH |
LENGTH |
| Size |
Tolerance |
Size |
Tolerance |
Size |
Tolerance |
| 1~3 |
0~+0.3 |
4~6 |
0~+0.2 |
5~30 |
0~+0.5 |
| 3~5 |
0~+0.4 |
6~10 |
0~+0.3 |
30~60 |
0~+1 |
| 5~8 |
0~+0.5 |
10~15 |
0~+0.4 |
60~100 |
0~+1.5 |
| 8~12 |
0~+0.8 |
15~20 |
0~+0.5 |
100-150 |
0~+2 |
| 12~15 |
0~+1 |
20~25 |
0~+0.8 |
150~200 |
0~+2.5 |
| >15 |
0~+1.2 |
25~30 |
0~+1 |
200~250 |
0~+3 |
| |
|
30~40 |
0~+1.5 |
250~300 |
0~+4 |
| |
|
40~50 |
0~+2 |
300~350 |
0~+5 |
| |
|
50~80 |
0~+3 |
350~450 |
0~+8 |
| |
|
>80 |
0~+5 |
>450 |
0~+10 |
| 1,The deformation amount of the plane of ordinary specifications is no more than 0.3mm, and that of the side is no more than 0.5mm |
| 2,Thickness <2MM, width BBB 0 20MM, lateral deformation less than or equal to 1MM |
| TYPE |
SPECIFICATION |
| T(mm) |
W(mm) |
L(mm) |
| STB12 |
0.8 |
1.6 |
25.4 |
| STB13 |
1.2 |
2.4 |
25.4 |
| STB13A |
1.2 |
2.4 |
20.6 |
| STB14 |
2.0 |
3.2 |
28.6 |
| STB206 |
1.6 |
4.8 |
152.4 |
| STB208 |
1.6 |
6.4 |
152.4 |
| STB210 |
1.6 |
7.9 |
152.4 |
| STB212 |
1.6 |
9.5 |
152.4 |
| STB216 |
1.6 |
12.7 |
152.4 |
| STB220 |
1.6 |
15.9 |
152.4 |
| STB224 |
1.6 |
19.1 |
152.4 |
| STB228 |
1.6 |
22.2 |
152.4 |
| STB24A |
1.6 |
3.2 |
25.4 |
| STB24B |
1.6 |
3.2 |
76.2 |
| STB24C |
1.6 |
3.2 |
31.8 |
| STB26A |
1.6 |
4.8 |
25.4 |
| STB26C |
1.6 |
4.8 |
76.2 |
| STB28A |
1.6 |
6.4 |
25.4 |
| STB28B |
1.6 |
6.4 |
31.8 |
| STB28D |
1.6 |
6.4 |
76.2 |
| STB310A |
2.4 |
7.9 |
50.8 |
| STB310B |
2.4 |
7.9 |
76.2 |
| STB310C |
2.4 |
7.9 |
127 |
| STB312 |
2.4 |
9.5 |
127 |
| STB316 |
2.4 |
12.7 |
152.4 |
| STB320 |
2.4 |
15.9 |
152.4 |
| STB324 |
2.4 |
19.1 |
152.4 |
| STB328 |
2.4 |
22.2 |
152.4 |
| STB332 |
2.4 |
25.4 |
152.4 |
| STB336 |
2.4 |
28.7 |
152.4 |
| STB34 |
2.4 |
3.2 |
127 |
| STB340 |
2.4 |
31.8 |
152.4 |
| STB348 |
2.4 |
38.1 |
152.4 |
| STB36 |
2.4 |
4.8 |
28.6 |
| STB36A |
2.4 |
4.8 |
31.8 |
| STB38A |
2.4 |
6.4 |
25.4 |
| STB38B |
2.4 |
6.4 |
38.1 |
| STB38D |
2.4 |
6.4 |
127 |
| STB410 |
3.2 |
7.9 |
152.4 |
| STB410A |
3.2 |
7.9 |
38.1 |
| STB410B |
3.2 |
7.9 |
76.2 |
| STB412A |
3.2 |
9.5 |
50.8 |
| STB412B |
3.2 |
9.5 |
76.2 |
| STB412C |
3.2 |
9.5 |
152.4 |
| STB412D |
3.2 |
9.5 |
25.4 |
| STB416 |
3.2 |
12.7 |
152.4 |
| STB416A |
3.2 |
12.7 |
25.4 |
| STB416B |
3.2 |
12.7 |
38.1 |
| STB416C |
3.2 |
12.7 |
76.2 |
| STB420 |
3.2 |
15.9 |
152.4 |
| TPYE |
SPECIFICATION |
| T(mm) |
W(mm) |
L(mm) |
| STB424 |
3.2 |
19.1 |
152.4 |
| STB428 |
3.2 |
22.2 |
152.4 |
| STB432 |
3.2 |
25.4 |
152.4 |
| STB436 |
3.2 |
28.7 |
152.4 |
| STB440 |
3.2 |
31.8 |
152.4 |
| STB448 |
3.2 |
38.1 |
152.4 |
| STB46 |
3.2 |
4.8 |
152.4 |
| STB48A |
3.2 |
6.4 |
25.4 |
| STB48B |
3.2 |
6.4 |
31.8 |
| STB48C |
3.2 |
6.4 |
57.2 |
| STB48D |
3.2 |
6.4 |
76.2 |
| STB48E |
3.2 |
6.4 |
152.4 |
| STB510 |
4.0 |
7.9 |
152.4 |
| STB512 |
4.0 |
9.5 |
152.4 |
| STB516 |
4.0 |
12.7 |
152.4 |
| STB520 |
4.0 |
15.9 |
152.4 |
| STB524 |
4.0 |
19.1 |
152.4 |
| STB528 |
4.0 |
22.2 |
152.4 |
| STB532 |
4.0 |
25.4 |
152.4 |
| STB536 |
4.0 |
28.7 |
152.4 |
| STB540 |
4.0 |
31.8 |
152.4 |
| STB610 |
4.8 |
7.9 |
152.4 |
| STB610A |
4.8 |
7.9 |
76.2 |
| STB612 |
4.8 |
9.5 |
152.4 |
| STB612A |
4.8 |
9.5 |
76.2 |
| STB616 |
4.8 |
12.7 |
152.4 |
| STB616A |
4.8 |
12.7 |
76.2 |
| STB620 |
4.8 |
15.9 |
152.4 |
| STB620A |
4.8 |
15.9 |
76.2 |
| STB624 |
4.8 |
19.1 |
152.4 |
| STB628 |
4.8 |
22.2 |
152.4 |
| STB632 |
4.8 |
25.4 |
152.4 |
| STB636 |
4.8 |
28.7 |
152.4 |
| STB640 |
4.8 |
31.8 |
152.4 |
| STB648 |
4.8 |
38.1 |
152.4 |
| STB68 |
4.8 |
6.4 |
152.4 |
| STB68A |
4.8 |
6.4 |
76.2 |
| STB812 |
6.4 |
9.5 |
152.4 |
| STB812A |
6.4 |
9.5 |
76.2 |
| STB816 |
6.4 |
12.7 |
152.4 |
| STB816A |
6.4 |
12.7 |
76.2 |
| STB820 |
6.4 |
15.9 |
152.4 |
| STB820A |
6.4 |
15.9 |
76.2 |
| STB824 |
6.4 |
19.1 |
152.4 |
| STB824A |
6.4 |
19.1 |
76.2 |
| STB828 |
6.4 |
22.2 |
152.4 |
| STB832 |
6.4 |
25.4 |
152.4 |
| STB836 |
6.4 |
28.7 |
152.4 |
| STB840 |
6.4 |
31.8 |
152.4 |
| STB848 |
6.4 |
38.1 |
152.4 |
Product Tags:
|
|

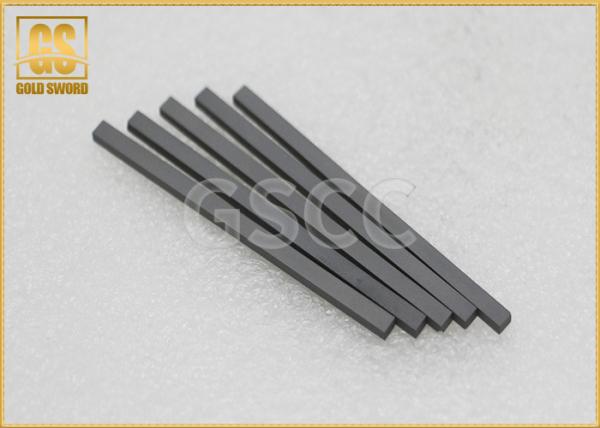

High Precision Tungsten Carbide Alloy STB206 / STB624 Long Service Life Images
|
